Cooling plates
134,00 € IVA no incluido
162,14 € IVA incluido
Stainless Steel Cooling Plates
Presupuesto rápido y sin compromiso
Fabricación propia con materiales de calidad
Especialistas en soluciones para bodegas
Description:
These plates are designed to be inserted through the upper opening of the tank, remaining submerged in the wine. Water is circulated through internal conduits in the plate to cool it and maintain a low fermentation temperature. Made entirely of Stainless Steel.
- Plate thickness: 1,0+1,0 mm
- Materials: Stainless Steel AISI 304
- Finish: Electrochemical polishing.
- Connectionss: Ø ½" / LENGTH: 300 mm. ("D")
- Perimeter welding by TIG process.

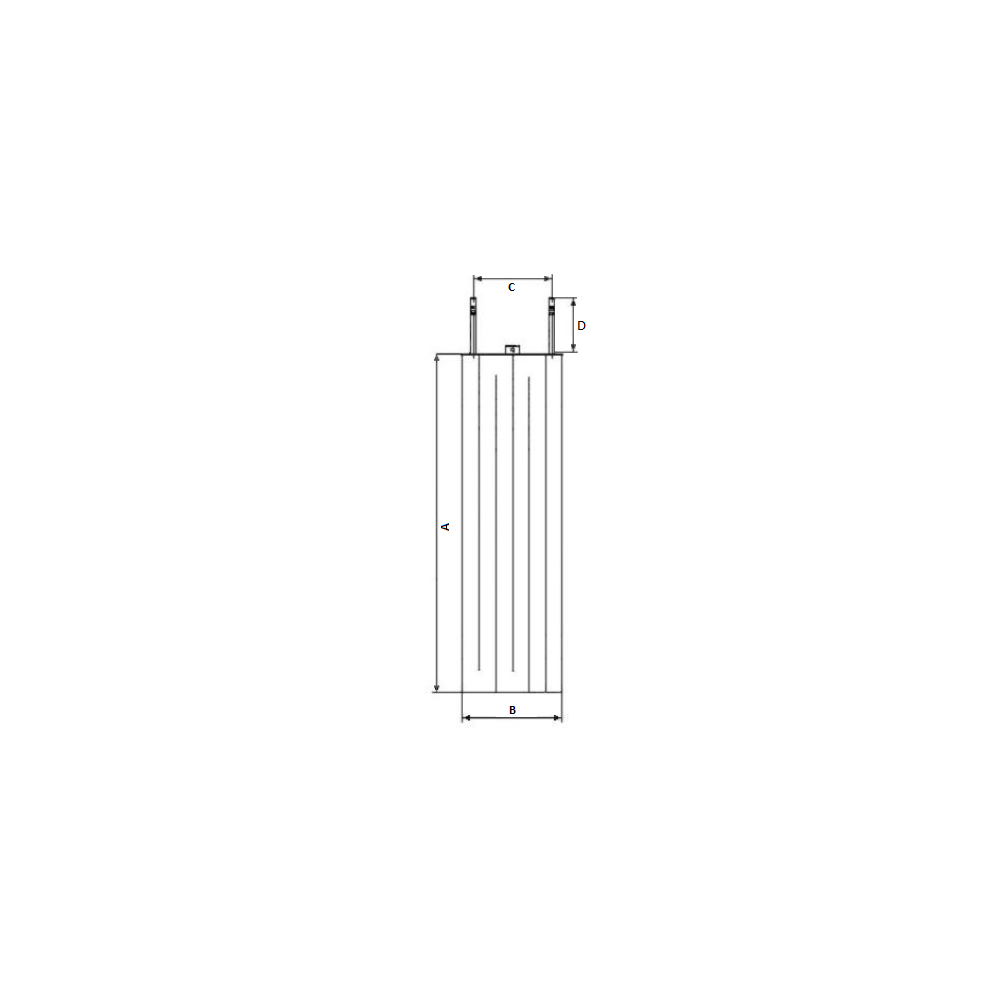

Available dimensions:
| Length "A" (mm) | Width "B" (mm) |
Connection distance "C" (mm) |
Area (m²) | Weight (Kg) |
| 600 | 270 | 210 | 0,32 | 2,9 |
| 800 | 270 | 210 | 0,44 | 3,8 |
| 800 | 370 | 290 | 0,59 | 5,2 |
| 1.000 | 270 | 210 | 0,54 | 4,8 |
| 1.000 | 370 | 290 | 0,74 | 6,5 |
| 1.400 | 370 | 290 | 1,04 | 9,2 |
| 1.800 | 370 | 290 | 1,33 | 11,4 |
| 2.000 | 370 | 290 | 1,48 | 13,2 |
| 2.500 | 370 | 290 | 1,85 | 16,8 |
| 3.000 | 370 | 290 | 2,22 | 20 |
