Manual barrel cleaners with a three-dimensional rotating head for cleaning the inside of wooden barrels. These units have a rotating spray head with a powerful injection system to reach every part of the barrel. The telescopic pole extends to the bottom of the barrel. In addition, the barrel washer itself has an integrated dirty water suction system.
Characteristics:
- Easy to use.
- They need a pressure washer (it can be either hot or cold water).
- They allow cleaning the barrel without the need to move or rotate it.
- Exhaustive, careful and complete interior cleaning (360º).
- Simple insertion into the mouth of the barrel.
- Integrated dirty water suction.
- Secure fixation on the barrel thanks to a patented support.
- Clean with:
-
- Clean water
- Cleaning products
3 models available:

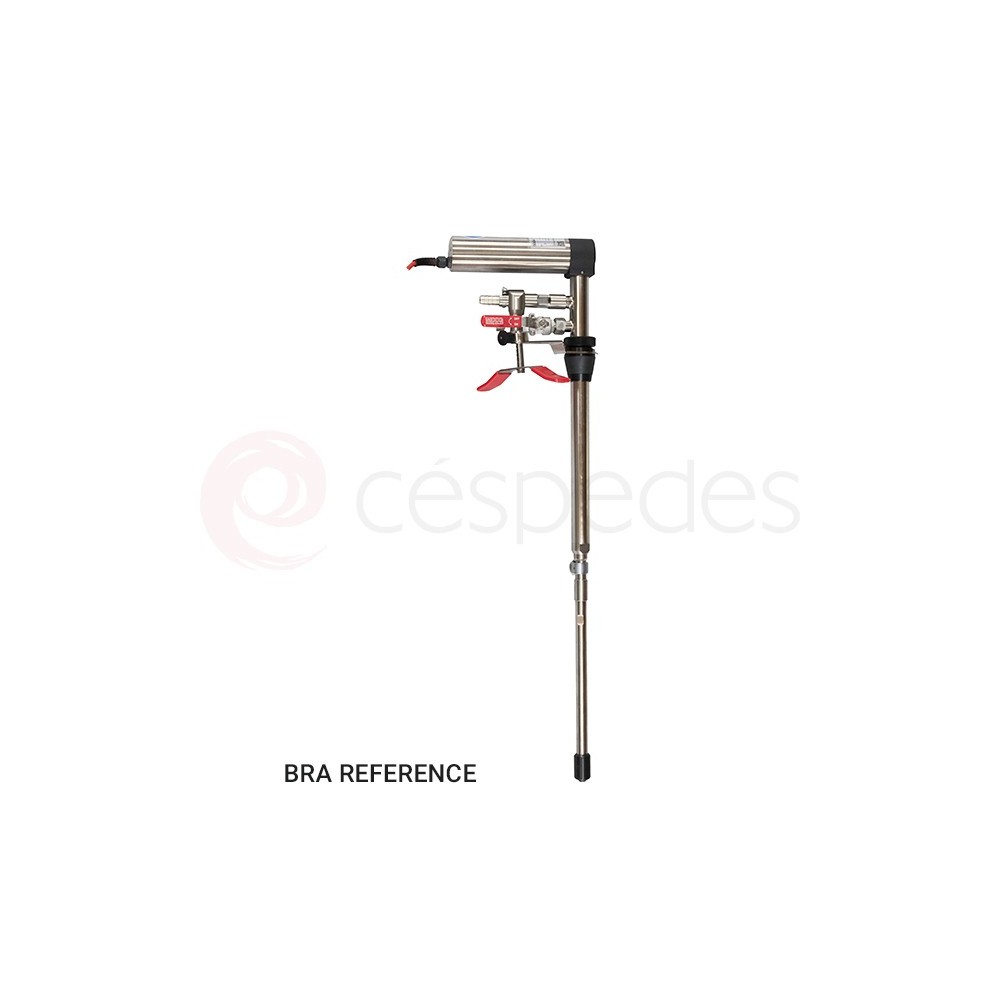

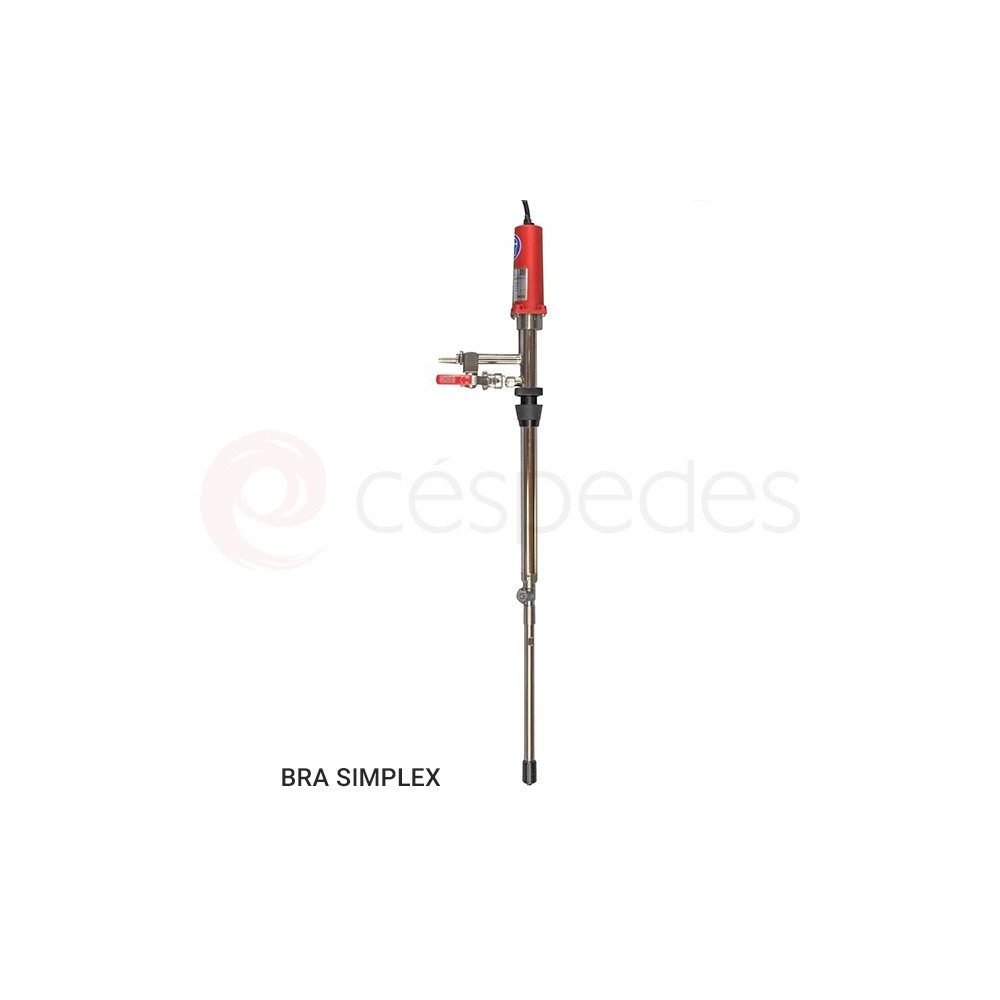

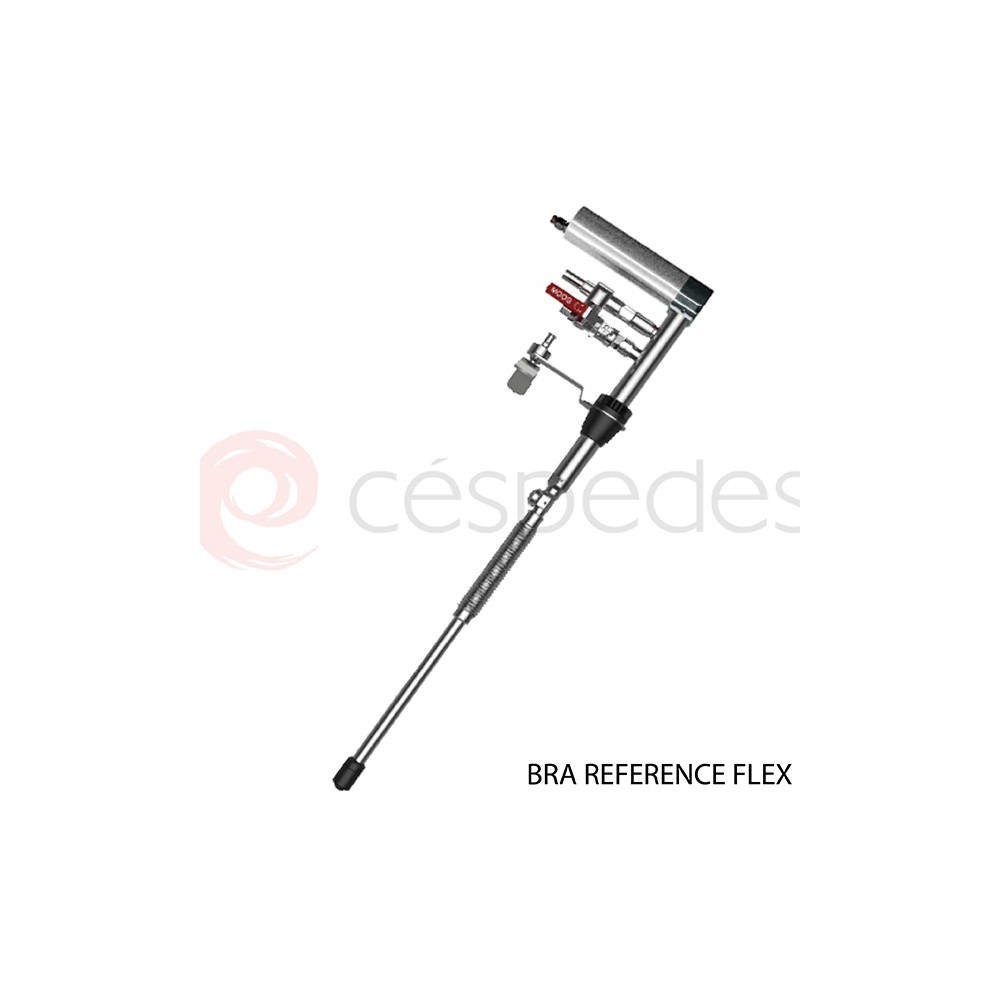

| Characteristics | BRA Simplex | BRA Reference | BRA Reference FLEX |
| Barrel storage in line | YES | YES | YES |
| Stacked barrel storage | NO | NO | YES |
| Barrel sizes | 225 Y 300 L | 225 Y 300 L | 225 L |
| Barrel mouth size | ≥ 37 mm | ≥ 37 mm | ≥ 37 mm |
| Water quantity | 13-20 L/min. | 13-20 L/min. | 13-20 L/min. |
| Water pressure | 80-120 bar | 80-120 bar | 80-120 bar |
| Water temperature | <95ºC | <95ºC | <95ºC |
| Nº of revolutions | 17 r.p.m | 17 r.p.m | 17 r.p.m |
| Water circuit material | INOX 316 | INOX 316 | INOX 316 |
| Shatter-proof sight glass | OPTIONAL | YES | YES |
| Adjustable barrel support | NO | YES | YES |
| Flexible suction tube | NO | NO | YES |
| Electrical network adapter | YES | NO | NO |
| Integrated power supply | NO | YES | YES |
| Stainless steel casing | NO | YES | YES |
| Actuation | Rocker switch | Push button with LED | Push button with LED |
| Water supply | M22 x 1,5 | M22 x 1,5 | M22 x 1,5 |
| Electrical system | 115/230V | 115/230V | 115/230V |
OPTIONALS:
- All 3 models allow the addition of a pressure regulator.
- The "BRA SIMPLEX" and "BRA REFERENCE" models can be fitted with an extension for use with 600 litre barrels.
